Checkered
Checkered
Features

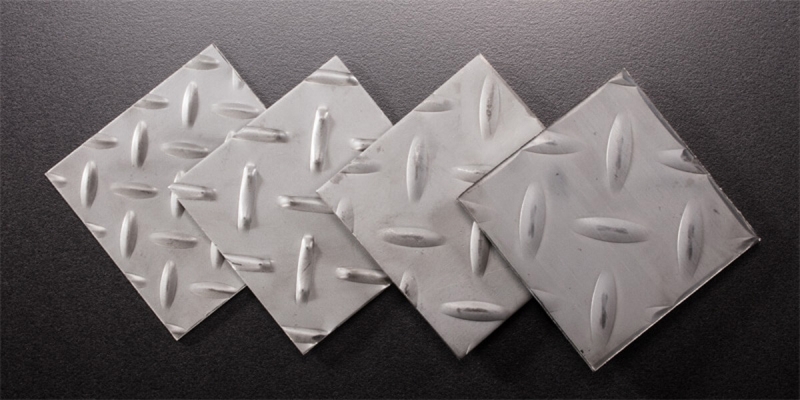

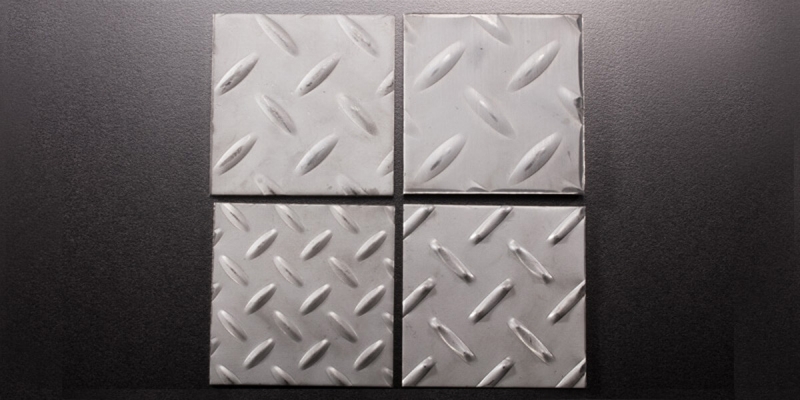

Checker plate, also known as diamond plate or tear plate. It was composed with regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. It¡¦s normally made by No.1, but also can be made by other finish like 2B or 2D.
The added texture reduces the risk of slipping making checker plate a solution for stairs, catwalks, walkways and ramps. It can also be used for interior decoration.
- Special dimensions was accepted on request
- Customized specific cut-to-length are acceptable
Related Products
-
2D2D is a dull, silver gray and non-reflective finish which results from cold rolling followed by annealing and descaling, and may perhaps get a final light roll pass through unpolished rolls. It's widely used in the industry that may not concern the uniform of the finish. Regular coils are typically supplied with an inner diameter of 508 / 610mm Special dimensions was accepted on request Customized specific strip are acceptable Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request -
2B2B is a smooth, moderately reflective cold rolled finish commonly produced in the same manner as 2D, except that the final light cold rolling pass is done by using polished rolls. 2B is the most economical and widely used stainless steel finish. It's especially common in industrial, chemical and food processing applications. Regular coils are typically supplied with an inner diameter of 508 / 610mm Special dimensions was accepted on request Customized specific strip are acceptable Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request -
GrindingGrinding finish which is known as brushed finish, also called as directional or Satin. It's an unidirectiona brushing finish obtained with 150/180/240/320 grit abrasive, it was characterized by short, parallel brushing lines that are uniform and direction in appearance, which extend uniformly along the length of the coil or sheet and generally used where lower reflectivity or gloss is required. Stanch are able to apply both wet grinding or dry grinding upon customer requirement, which was gave the stainless steel appearance in different flavour. Because of its durability, scratch resistance, and decorative nature function, grinding finishes are widely used for architectural decoration, public spaces, kitchen equipment, bathroom sinks, elevator panels, storefronts, food processing, dairy equipment, and also in automotive sector. Regular coils are typically supplied with an inner diameter of 508 / 610mm Special dimensions was accepted on request Customized specific strip are acceptable Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request -

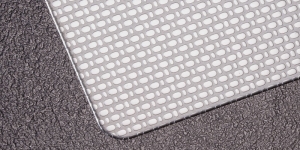

LinenLinen is one kind of embossed stainless steel finish with directional, reflective and uniformly textured. It's designed for exterior and interior of architectural, such as wall panels, elevator panels, escalator, coping and trim. Because of its honeycomb texture, Linen was also popular for sink application for scratch resistant. Regular coils are typically supplied with an inner diameter of 508 / 610mm Special dimensions was accepted on request Customized specific strip are acceptable Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request Stanch is one of top Stainless Steel Companies based in Taiwan. We not only provide Linen Finish Stainless Steel, but also offer other finish options at customer request. If you need a trustworthy partner, you can rely on Stanch Stainless Steel! -
CD OverlayCD Overlay, which was also called Circle CD. It is a patterned polished finish which was applied mechanically to the surface and create consistent circle patterns, which is designed to create various visual effects. It's widely used in architectural and decoration application such as wall panels, cabs, coping and trim. Special dimensions was accepted on request Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request -
EtchedEtched patterns are created by selectively applying a protective acid resistant film to appointed areas and acid etching the unprotected areas. The etching removes a thin layer of stainless steel, changes the color to a dull silver gray, and roughens the surface, which can be contrasted with grinding, super mirror or other finishes to create thousands of variations. Etched finish also can be colored before or after etching. It was widely used for decoration applications, such as elevator doors, wall panels, coping and trim. Special dimensions was accepted on request Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request Stanch is one of leading cold rolled stainless steel companies based in Taiwan. We can offer kinds of surface finishes. If you are interested, please do not hesitate to contact our service team with your specific request. -
Scotch-BriteScotch Brite is a semi-dull brushed finish with uniform grain, which is grinding by finer abrasives than No.4, No.5, and No.6. Scotch Brite grinding surface has smooth, soft and exquisite grains with a low level reflectivity and unidirectional texture. It's suitable for internal architectural, elevator panels, and kitchen applications. Regular coils are typically supplied with an inner diameter of 508 / 610mm Special dimensions was accepted on request Customized specific strip are acceptable Customized specific cut-to-length are acceptable PE/Laser PE/Optic Fiber Laser PE are available on request -
PerforatedThe perforated stainless steel sheet/plate was produced by stamping or punching to create a uniform pattern of holes, slots, or decorative sharps. The perforated steel/plate has been utilized across a variety of industries, such as architectural, food and beverage, automotive, construction, and so on. Special dimensions was accepted on request Customized specific cut-to-length are acceptable -
No.1No.1 is a rough, dull and non-uniform finish, which results from hot rolling to the specified thickness, followed by annealing and descaling. It's generally used in industrial applications, such as equipment for elevated temperatures service, checker plate and so on. Regular coils are typically supplied with an inner diameter of 508 / 610mm Special dimensions was accepted on request Customized specific strip are acceptable Customized specific cut-to-length are acceptable
