Product Name : PVD Coating
Product Introduction

Physical Vapor Deposition (PVD) is a process to produce a metal vapor (titanium, chromium and aluminum) that can be deposited on electrically conductive materials as a thin highly adhered pure metal or alloy coating. The process is carried out in a vacuum chamber at vacuum using a cathodic arc source.

The coating compounds are made up of various elements such as carbides, nitrides, borides and silicide. A wide variety of colors can be achieved by adding different gases during the deposition.

WHY CHOOSE PVD COATING?

  • PVD coating is one of the best methods for enhancing thin film plating elements. The vacuum deposition method coats the product with a film of hard refractory material 1-2 microns thick.
  • PVD coatings surpass traditional electroplated coatings, it's more corrosion resistant and have superior hardness.
  • PVD coatings do not discolor or tarnish, and do not suffer under UV radiation so easy.
  • More environmentally friendly than traditional coating processes such as electroplating or painting.

WHY CHOOSE STANCH PVD COATING?

Stanch innovate new technique to make the PVD colored coats much harder and more durable than others. The general coating deposition method coats the product with a film of hard refractory 1-2 microns thick, but we make it thicker for better wear, scratch and corrosion resistance making its durability superior to general coating methods such as electroplating or other PVD processes. Stanch new PVD technique can be achieved smooth PVD coat with good scratch resistant compared to other PVD processes as well.

SampleThicknessComments
C < 100nm Very thin
J < 150nm Thin with rough surface
K < 250nm Acceptable thickness with fine surface
Stanch 300nm Good thickness with finer surface

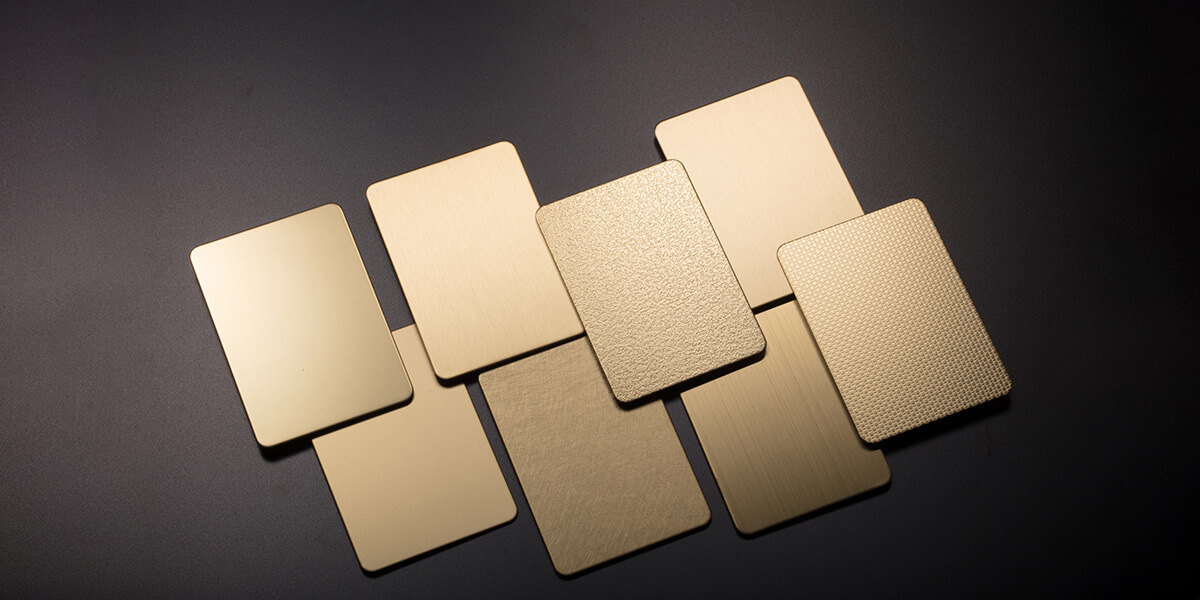

PVD can be coated on all kinds of stainless steel finish, but usually apply to finer finish such as Super Mirror (No.8), Bead Blasted, Hairline, Starlight, Linen..... it's widely used for architectural and decorative applications, such as wall panels, coping and trim, also artistic objects.

AVAILABLE SIZES

GradeTypeThickness75091410001219125015001524
304/304L SHEET 0.3~3.0
316L SHEET 0.3~3.0
430 SHEET 0.3~3.0
  • Special dimensions was accepted on request
  • Customized specific cut-to-length are acceptable
  • PE/Laser PE/Optic Fiber Laser PE are available on request

AVAILABLE COLOR

  • Champagne, Gold, Coffee, Copper, Black, Carbon Black
  • We are continuously researching and developing the process to add more colors. If there is a particular color that you’re interested in developing, please don’t hesitate to contact us.
